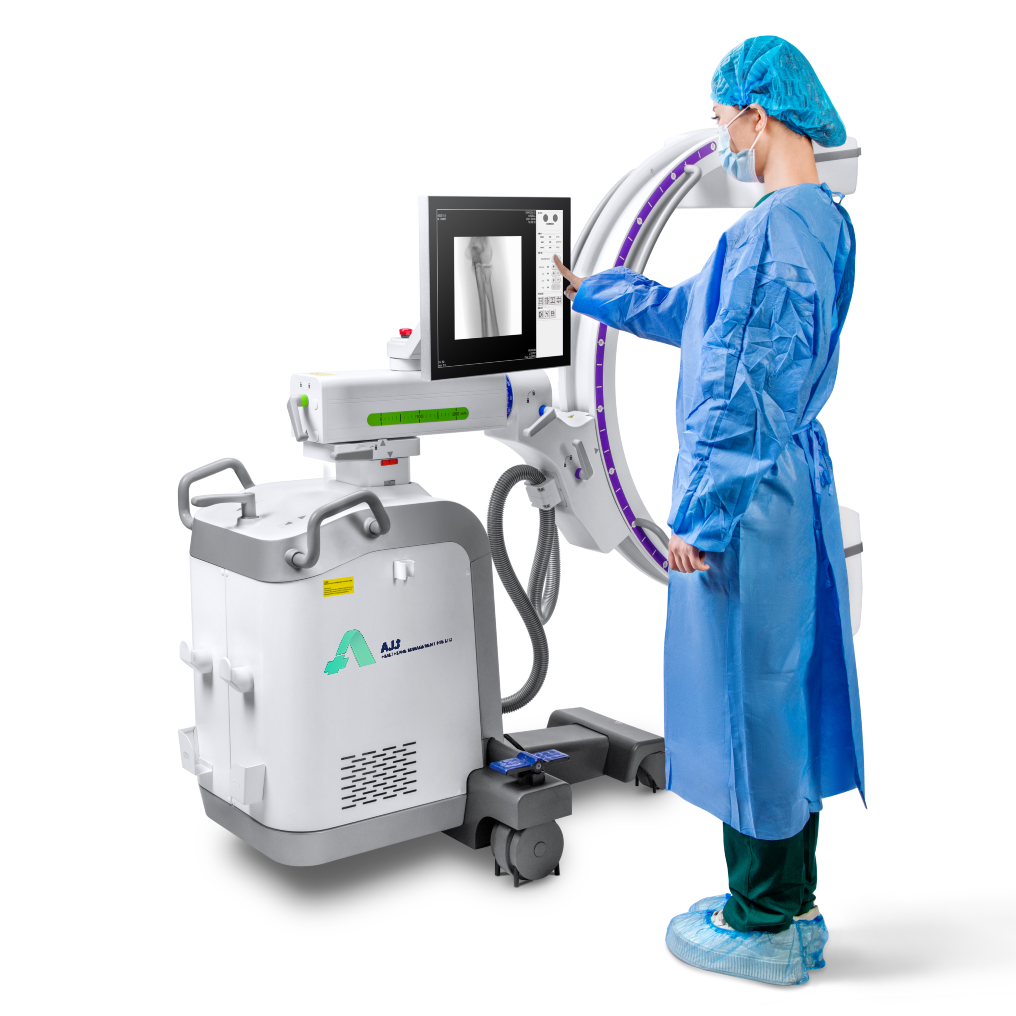

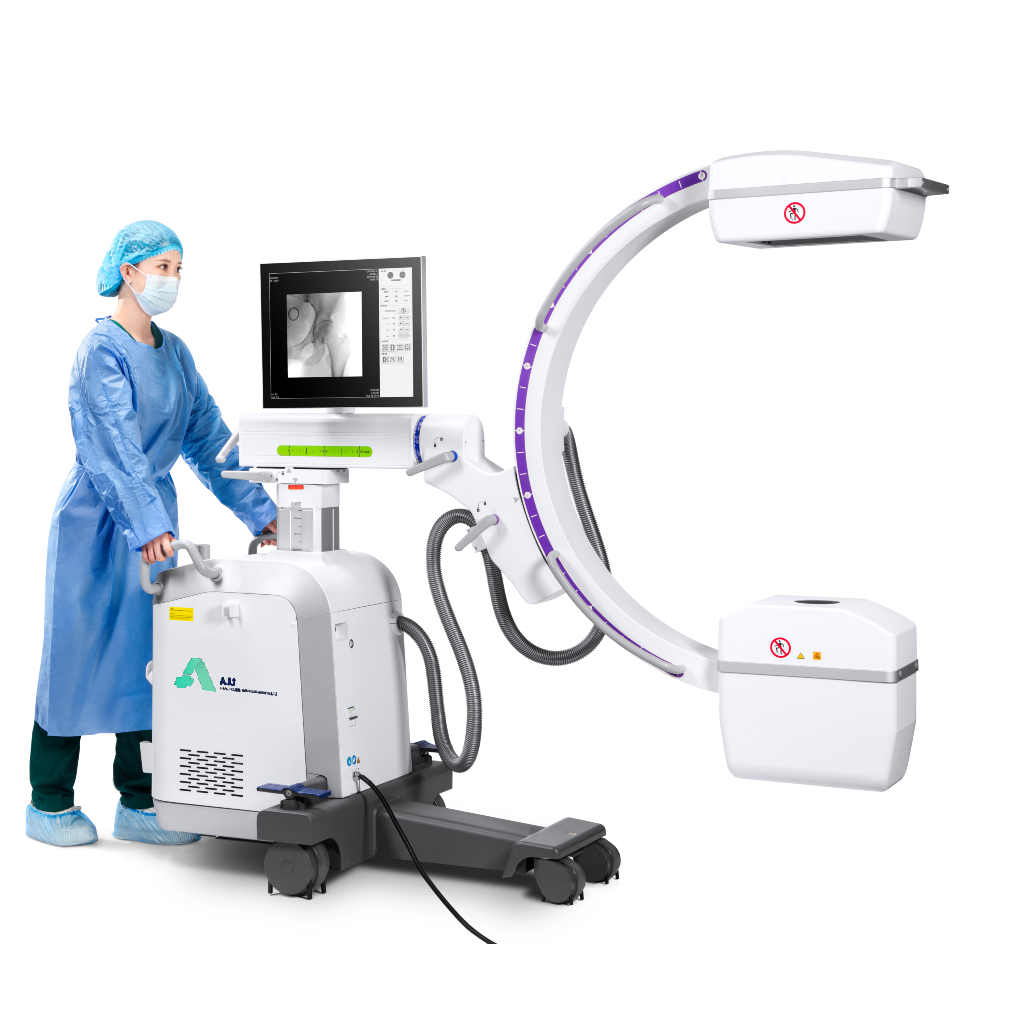

MobileRay-C Digital Mobile C-Arm X-Ray Radiographic System

"MobileRay-C" is a low-dose mobile C-arm with flat-panel detector, which is mainly used for surgical positioning and imaging capturing. The industry-leading flat panel detector and advanced SPI processing technology are adopted to effectively reduce the loss of image signal and improve the image quality; IDC exposure technology and innovative DAP dose real-time display ensure best image quality at a minimized dose; It can meet the needs of different clinical application, and will bring a new experience for clinical workflow.

Quantity

Add to cart

Share :

Using the full digital HD large-scale dynamic flat panel detector, there is no distortion in image acquisition. The product adopts millions of high pixels, and the pixel spacing is not more than 200 microns, any tiny an atomical structure can be clearly displayed. The highest spatial resolution is 3. 2 LP/mm, and the details of the multi- level field of view image are still clearly visible. Using 16bit gray level acquisition, GPU parallel computing acceleration technology and SPI algorithm processing technology, it can effectively reduce signal loss, shorten imaging time and improve image quality.

Technical Specification

Flat Panel Detector

  • Detector type: a Si EPID (amorphous silicon imaging device)
  • Scintillator material: CsI (Cesium iodide)
  • Images Size: 9”x9”
  • Maximum pixel matrix: 1024*1024
  • Minimum pixel spacing: 200μm
  • Radiography spatial resolution: ≥2.5l p/mm, 16bits
  • Fluoroscopy spatial resolution: ≥1.8l p/mm
  • Maximum frame rate of pulse fluoroscopy: 15fp/s
  • Fluoroscopy image stabilization time: ≤2S
  • Imaging time:
    Radiography mode: ≤1.5s
    Pulse fluoroscopy mode: ≤0.5s
    Continuousfluoroscopy mode: ≤0.5s
  • Intelligent dose control (IDC) function

High Frequency Generator

  • Input power supply voltage: single phase AC, 220 V (± 10%)
  • Input power frequency: 50 Hz / 60 Hz
  • Output power: 5KW
  • Tube voltage range: 40kV ~ 120kv
  • Tube current:
    Radiography mode: 1mA ~ 100mA
    Pulse fluoroscopy mode: 0.5mA ~ 13mA
    Continuous fluoroscopy mode: 0.5mA ~ 6mA
  • Automatic brightness control (ABS) function.

X ray tube

  • Tube voltage: 130kv
  • Tube power: 5kW / 17kw
  • Focus size: 0.3mm/0.6mm
  • Anode target angle: 10 °
  • Maximum anode heat capacity: 150kJ (200kHU)
  • Heat capacity of X ray tube: 1000kJ (1333.34kKU)

Collimator

  • Control mode: Electric
  • Square range: 210mm*210mm at SID 1000mm
    (It has the function of one key in positioning, and the field of view is adjustable)
