LEDSL760 & 760/760

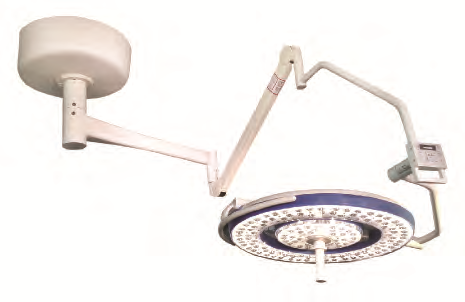

LEDSL760 series shadowless LED surgery light has 2 groups sources composed by 131 LED bulbs: One group (outer ring) has 16 sets of light sources, and each set includes 6 LED bulbs; another group (inner ring) has 5 sets of light sources, and each set includes 7 LED bulbs. Each individual LED light source can emit light and reflected by the respective reflecting surface, and then the focus position of light field in different convergent optical lens is formed through the surgical area, the combination of the optical domain to achieve a superior surface and deep and uniform lighting effect to meet a variety of surgical needs.

Quantity

Add to cart

Share :

Technical Specification

Model

Illuminance

Colour Temperature

Colour reduction index (Ra)

Illuminance depth

Total irradiance

Size of light field

Lamp head diameter

Rated power of bulb

Service life of illuminant

Power supply voltage

Brightness adjustment

Lowest height of installation
LEDSL760/760

≥150,000 / ≥150,000 Lux

4500 ± 200K

96 / 96

1150mm / 1150mm

510W/m2 / 510W/m2

180 - 260mm

760mm

3.2V / 1W

≥50,000h

AC110-240V,50/60Hz

Automatic 8-stage continuous light adjustment

 2900mm
LEDSL760

≥150,000 Lux

4500 ± 200K

96

1150mm

510W/m2

180 - 260mm

760mm

3.2V / 1W

≥50,000h

AC110-240V,50/60Hz

Automatic 8-stage continuous light adjustment

 2900mm



N/A
