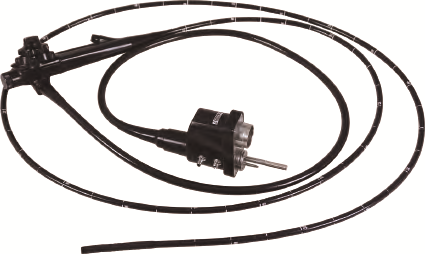

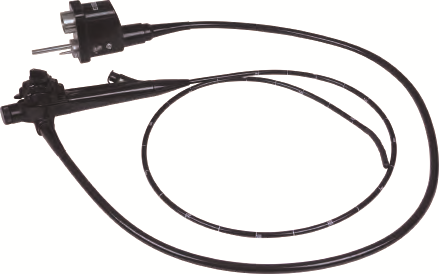

Gastrix 85V/92V/60V/35V & Colonix 98V/130V/135V

Feature:
Portable design – 3.5 inches LCD Monitor:
Portable veterinary endoscope adopts the expanded viewing and recording capability. It enables observation
without cables or peripherals, providing with a level of mobility that allows it be operated almost anywhere.


Excellent optical system:
High definition image: High-definition CMOS camera adopts the 990K pixels. It can capture high quality images.
Wider field of view technology can provide excellent and detailed images.
Large range angulations make it easier to observation.
3-100mm depth of view provides precise observation ability for both close and far objects.


Wider instrument channel:
It is easier to operate that a wide range of instruments can be used with the 2.0mm~3.2mm diameter channel.

Quantity

Add to cart

Share :

Standard:
Veterinary endoscope, Image processor with light source VIS-1200HD, 3.5” LCD, Accessories: Biopsy forceps (2pcs), Cleaning brush (2pcs), Leakage tester & Water-resistant cap (1pc), Spare suction / air water valves set (1pc), Water bottle (1pc), Biopsy cap (3pcs), Cleaning kits (1pc), Cleaning cap (1pc), Plug information card (1pc), Instruction manual (1pc), Carrying case (1pc).


Optional:

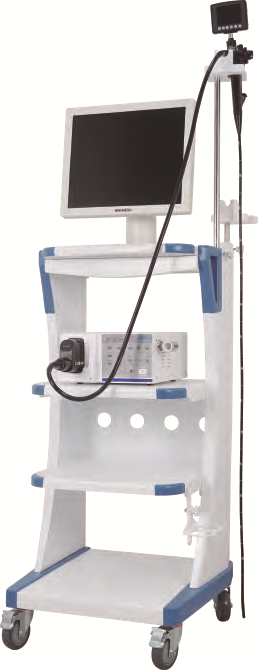

Imaging Processor with light source and battery VIS-1200HD(Li), Imaging Processor with light source for both flexible endoscopes and rigid endoscopes VIS-1200R, 19”/27” LCD medical monitor, Trolley, Autoclavable grasping forceps, etc.

Technical Specification

Specifications for Veterinary Endoscope:

Model View of
Field		 Depth of
View		 Working
Length		 Diameter of
Insertion
Tube		 Diameter of
Instrumental
Channel		 Range of Tip
Bending
Gastrix 85V 140° 3-100mm 1500mm 8.5mm 2.0mm 210°(U),90°(D),
100°(R),100°(L)
Gastrix 92V 140° 3-100mm 1500mm 9.0mm 2.8mm 210°(U),90°(D),
100°(R),100°(L)
Colonix 98V 140° 3-100mm 3000mm 9.6mm 2.8mm 210°(U),90°(D),
100°(R),100°(L)
Colonix 130V 140° 3-100mm 3000mm 12.8mm 3.7mm 180°(U),180°(D),
160°(R),160°(L)
Colonix 135V 140° 3-100mm 3500mm 12.8mm 3.7mm 180°(U),180°(D),
160°(R),160°(L)
Gastrix 60V 120° 3-50mm 1000mm 6.0mm 2.2mm 210°(U),90°(D),
100°(R),100°(L)
Gastrix 35V 120° 3-50mm 600mm 3.5mm 1.2mm 160°(U),130°(D)

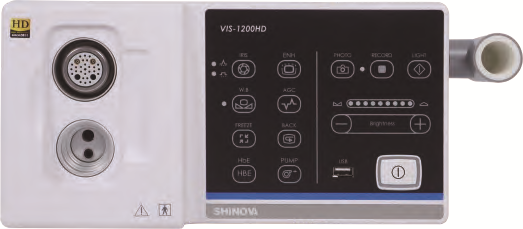

Specifications for Imaging Processor (Model: VIS-1200HD):

  1. Power supply: AC 110-220V(10%), 50/60Hz
  2. Video Signal Output: AV, DVI, Y/C (S-video)
  3. Build-in USB image capturing device (connect to PC)
  4. Type of protection against electric shock: Class I
  5. Brightness Adjustment: +- 50 steps
  6. Degree of protection against electric shock: BF type
  7. Manual IRIS function: Ave/Peak
  8. Hemoglobin Enhancement: 0-3 steps
  9. Full digital image processing
  10. Freeze and Display: 16pics
  11. HD Video/Photo Recording through USB disk 16G
  12. Multi-level illumination control: 9 steps
  13. White balance function
